Autorimo

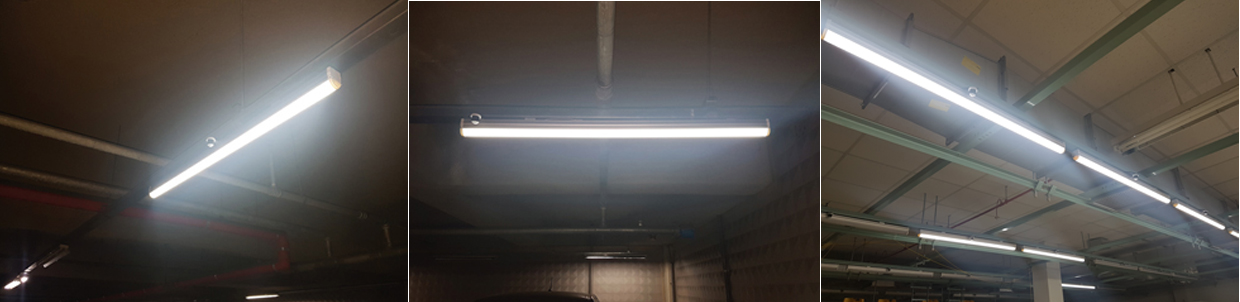

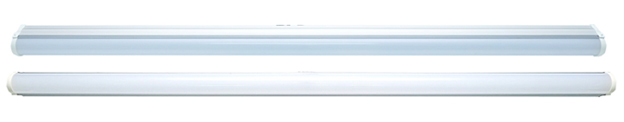

A linear LED luminaire optimized for wide areas such as parking lots and staircases, available in 12W, 14W, or 16W options. It features a round-shaped light diffusing PC cover to evenly distribute light and an aluminum frame for durability. Various functions are available based on user preferences, including sensor-integrated types, dimming sensor lights, and group dimming LED luminaire systems.

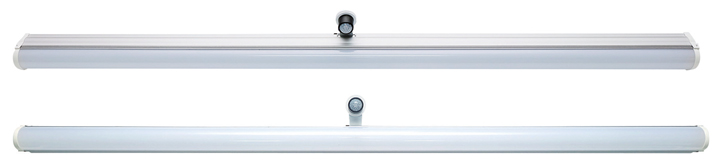

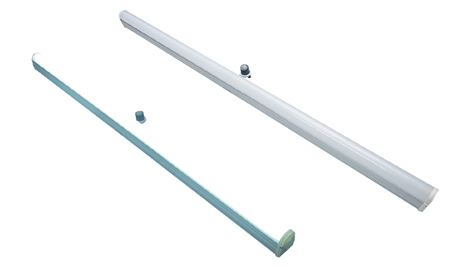

This is a product that adds a high-sensitivity sensor function to the LED luminaire (APL12/14/16). It features a sensor module embedded within the aluminum frame, allowing for adjustments to brightness and timer settings. When motion is detected, the LED luminaire illuminates, and after a set period, it automatically turns off, enhancing energy efficiency.

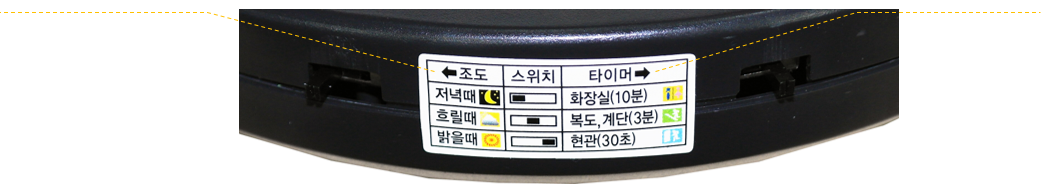

Daylight (Illuminance)
Sets the illuminance level at which the sensor turns lights on or off.
Night(5~10LUX), Cloudy(30~60LUX), Regardless of illumination (100LUX) 3 levels
Sensor Timer
Sets the illumination duration after sensor detection.
Bathroom (10m), Corridor/Staircase(3m), Entrance(30s)

Sensor Position Adjustment

The sensor can be moved to the desired location.
Emergency Light Operation Feature (Option)

By adding an Emergency Light Automatic Transfer Switch (AET202), the circuit automatically switches to emergency light power in case of a power outage, allowing it to operate as an emergency light.

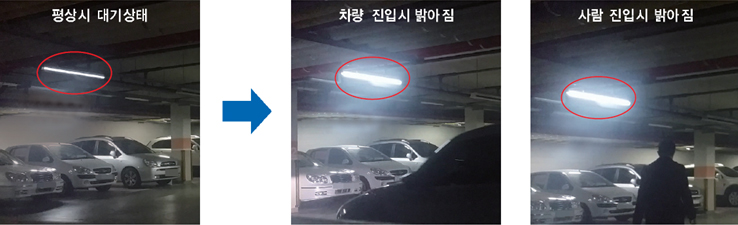

This product is an enhancement of the LED fixtures (APL12/14/16) with added high-sensitivity sensor and dimming capabilities. It shares the main features of the Sensor-integrated Type(APL12S/14S/16S). Housed within the aluminum frame are both sensor and dimming modules. When motion is detected, the brightness of the LED fixture increases, and after a set period of time, the brightness decreases. This is particularly convenient for use in locations such as underground parking lots where overly dim lighting is undesirable.

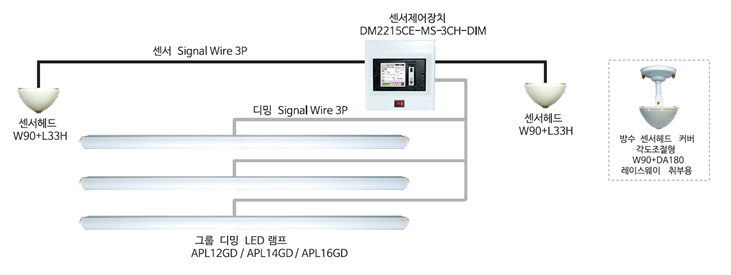

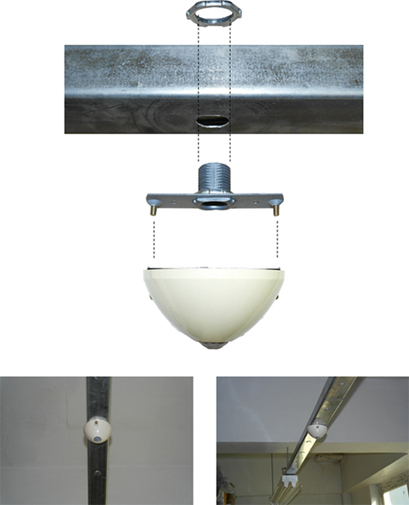

When it's necessary to manage multiple lights in divided areas, LED fixtures (APL12/14/16) are grouped together for control purposes. Sensor heads are installed at various points such as parking lot entrances and exits, where detection is required. When motion is detected, the brightness of the LED fixtures in the group increases, and after a set period of time, the brightness decreases.

Items		APL12	APL14	APL16
LED Power consumption		12W	14W	16W
Number of LEDs		60EA	72EA	84EA
Input Voltage		110/220V AC
Power Consumption		Less than 1W
Size		42(W) X 62(H) X1200(L) mm
Sensor Module	Detection Angle	125˚
	Daylight Setting	Night(5~10LUX), Cloudy(30~60LUX), Regardless of illumination (100LUX) 3 levels
	Sensor Time Delay	30s, 3m, 10m
	Field of view	10m
