LED Lighting Fixtures

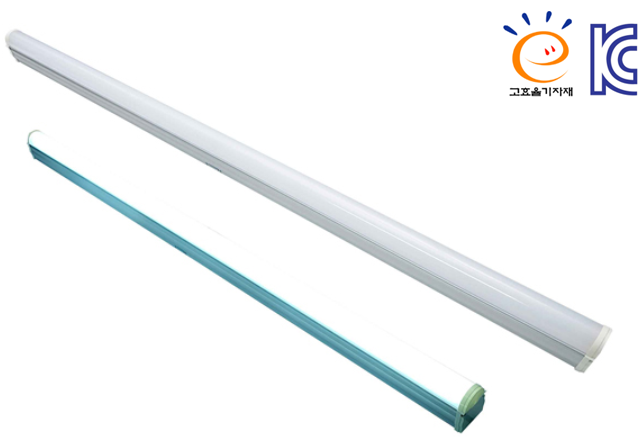

High-efficiency LED Light APL18H

Product Description

  • It's a practical product certified for high-efficiency equipment, featuring low power consumption, high luminous intensity, and a sturdy structure. It can be used as a sensor light (ON/OFF) when integrated with an automatic sensor.

Adding sensor functionality

  • Adding the high-sensitivity sensor function of AUTORIMO, when motion is detected, the LED light fixture illuminates, and after the set time elapses, it turns off, further increasing energy-saving efficiency and making light management more convenient.
  • LED Sensor Lights for Parking Lots

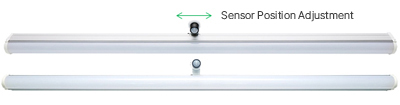

    This product is integrated with the Pendant/Raceway Sensor (DM2215CE-PN), where the sensor body is concealed within the aluminum frame of the LED fixture, with only the detection unit (sensor head) exposed outside the frame, allowing for flexible positioning.
  • LED Sensor Lights for Staircases

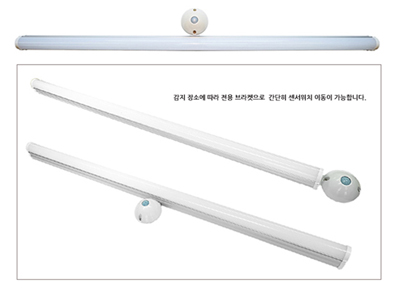

    A product integrated with a small high-sensitivity sensor (DM2215CE-W90-L) designed for LED lights. The sensor body and detection unit are integrated into one piece, making it easy to install and detach/attach the sensor.

Emergency Light Operation Feature (Option)

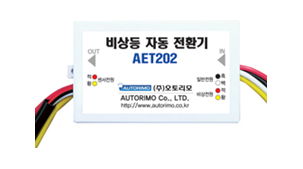

  • By adding an Emergency Light Automatic Transfer Switch (AET202), the circuit automatically switches to emergency light power in case of a power outage, allowing it to operate as an emergency light. This feature makes it useful for applications such as parking lots and staircases.

Specifications

  • Rating: 220V~, 60Hz, LED 84EA, 18W, 0.088A
  • Purpose: Fixed luminaire for direct illumination of parking lots or staircases, equipped with embedded LEDs.
  • Internal Structure: LEDs illuminated by dedicated LED converter and driver.
  • External Structure: Attached to an aluminum frame with a diffuse translucent plastic cover.
Item APL18H
Total flux 2300 lm
Efficiency 120 lm/w
Color temperatur 5700K
Power consumption 18W
Input voltage 220Vac, 60Hz
Power factor > 0.94
Color rendering index Ra80
Operation temperature -30℃ ~ 55 ℃
Beam angle 120 º
Housing & Lampshade AL & PC
Weight 0.83Kg
Lifetime > 40,000 Hrs
Dimension 1200 × 52.7 × 63 mm
Installation Bar type
