LED Lighting Fixtures

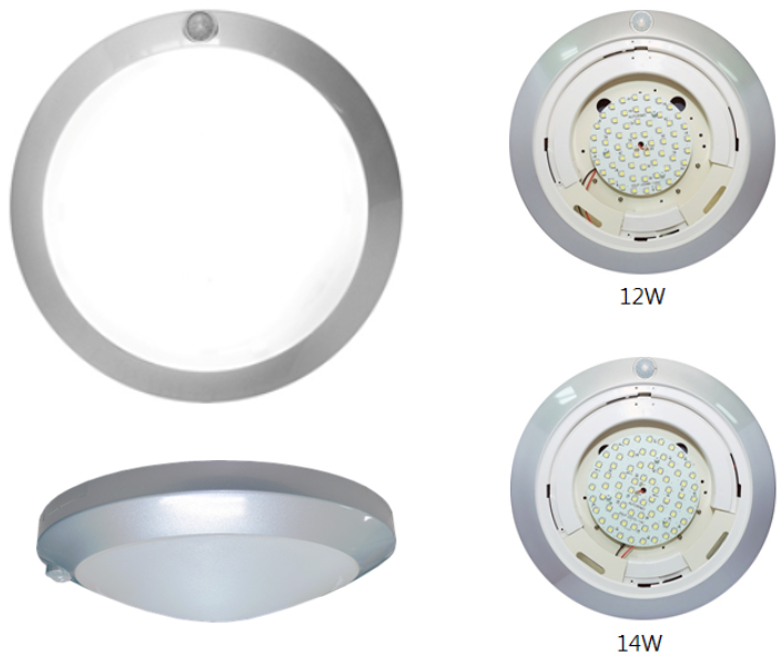

LED Sensor Light DSL226U-LED

Product Description

  • Suitable for places requiring maximum brightness and sensitivity, such as high stairs or wide halls, with a high-sensitivity LED sensor light that can detect even at long distances.
  • It can be installed to ensure emergency power input during power outages, allowing it to function as an emergency light. (Optional)

Functions

  • Daylight (Illuminance) / Sensor Timer
  • Adjusting Detection Range
  • Emergency Light Operation Feature (Option)
    During a power outage, the circuit automatically switches to emergency light power, activating the emergency lights.

Lens Type Selection

  • You can choose the lens type to adjust the detection range according to the site conditions.
Front View 　 　
Lens Type L type (default) S type I type
Detection Angle 120° 60° 30°
Applications Wide Spaces Such as Corridors, Staircases, etc.  Small Areas like Entrances, Restrooms  Individual rooms, restroom stalls, etc.

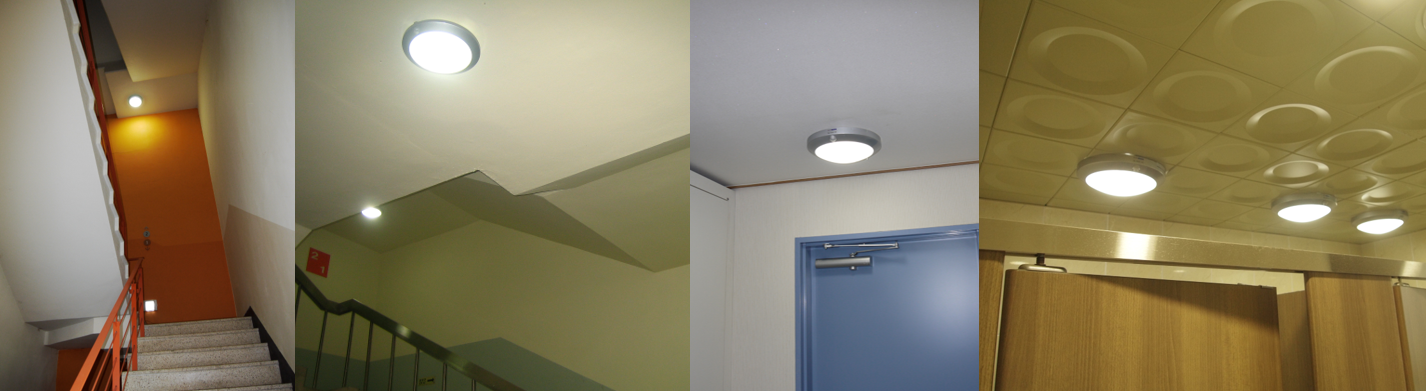

Installation Examples

Specifications

Item DSL226U-LED12 DSL226U-LED14
LED Power consumption 12W 14W
Total flux 550~780lm 1170lm
Color temperature 5,000~5,500K
Efficiency 65lm/W
Power factor 0.85
 Color rendering index 70Ra
Input Voltage 220V, 60Hz/50Hz
Power Consumption 0.3W
Detection Angle Max 120° ~ Min 30° Adjustable
Field Of View Maximum vertical distance of 8-9m, within a radius of 4-5m
Daylight Setting Night(5~10LUX), Cloudy(30~60LUX), Regardless of illumination (100LUX) 3 levels
Sensor Time Delay 30s, 3m, 10m
Size Ø 320mm(Diameter) x 90mm(Hight)
