Air-conditioner Automatic Remote Control

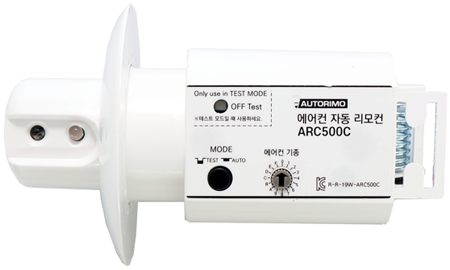

Air-conditioner Automatic Remote Control ARC500C

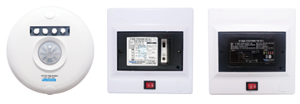

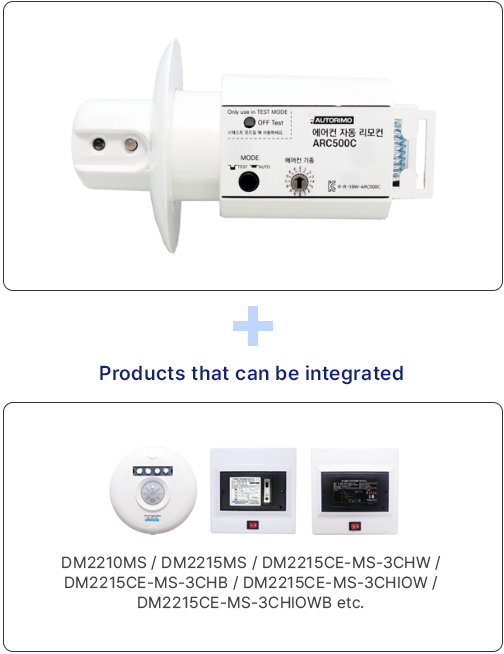

Products that can be integrated

DM2210MS / DM2215MS / DM2215CE-MS-3CHW /
DM2215CE-MS-3CHB / DM2215CE-MS-3CHIOW /
DM2215CE-MS-3CHIOWB etc.

Product Description

  • A product that can be integrated with occupancy sensors or multi-head sensor systems. When the air conditioner continues to operate in the absence of occupancy, the integrated sensor sends a blocking signal to the air-conditioner auto remote control, prompting it to turn off the air conditioner. Designed for ceiling installation to avoid compromising interior aesthetics and to maximize energy-saving benefits.

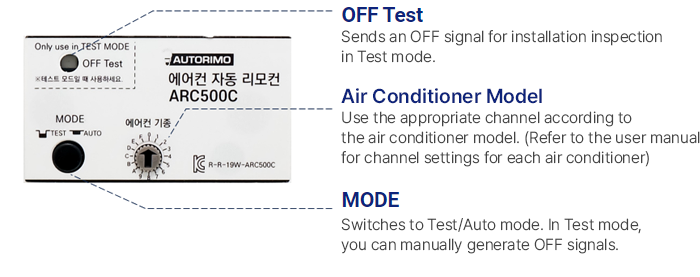

Functions

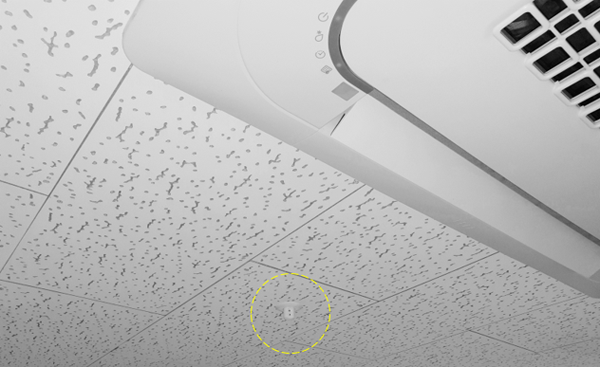

Installation Examples

  • As a embedded ceiling design, even when installed near air conditioning units, it remains inconspicuous. It automatically switches off the power to high-energy-consuming air conditioners when unoccupied, providing significant energy savings.

Design Examples

Lecture rooms
  • The basic installation layout involves integrating the Multi-Head Occupancy Detection System with the air conditioning remote control to control the classroom lights and air conditioner.
  • Indoor occupancy sensors are embedded for detection, while the air conditioning remote control is placed in front of the air conditioning receiver unit.

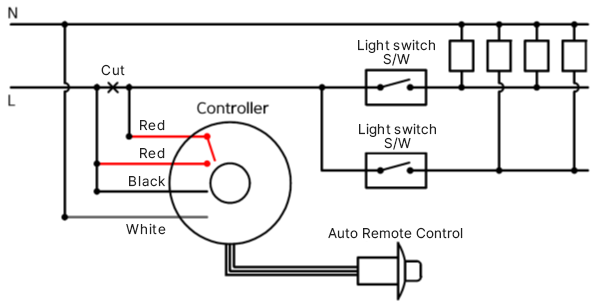

Wiring Diagram

Specifications

Item

ARC500C

Power Input

12V DC

Control Signal

5V DC

Output Signal

Infrared Auto OFF Signal According to Air Conditioner Model

Control Method

Signal Generation for OFF in Absence

Size

35.4X27X80mm (Projection Ø22.6X27mm, Cover Ø54X5mm)
