LED Lighting Fixtures

High-efficiency LED sensor light ACL224HS

Product Description

  • It is a high-sensitivity LED sensor light that can be detected even at long distances (ceiling height of 7-8m), certified for high efficiency.
  • It is suitable for places such as high stairs or large halls where maximum brightness and sensitivity are required.
  • It can be installed to ensure emergency power input during power outages, allowing it to function as an emergency light. (Optional)

Functions

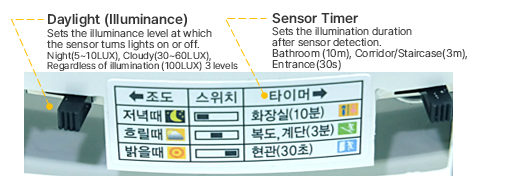

  • Daylight (Illuminance) / Sensor Timer

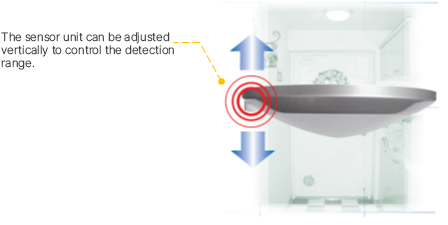

  • Adjusting Detection Range

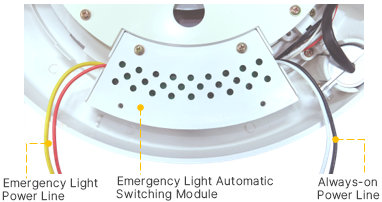

  • Emergency Light Operation Feature (Option)
    During a power outage, the circuit automatically switches to emergency light power, activating the emergency lights.

Lens Type Selection

  • You can choose the lens type to adjust the detection range according to the site conditions.

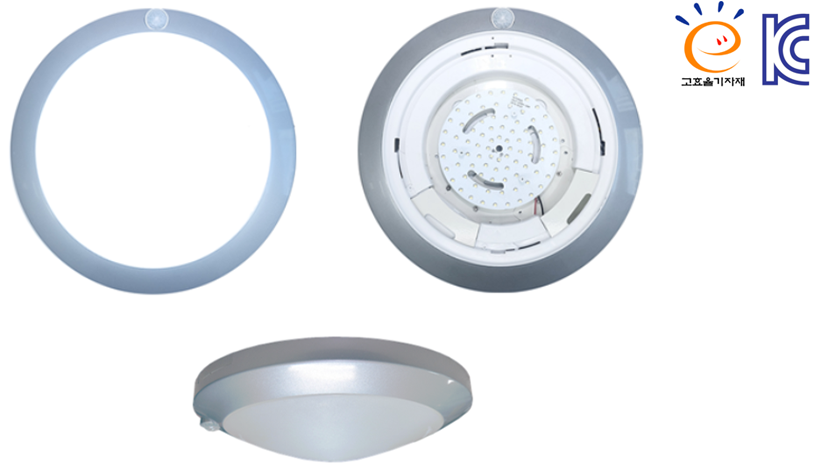

Front View 　 　
Lens Type L type (default) S type I type
Detection Angle 120° 60° 30°
Applications Wide Spaces Such as Corridors, Staircases, etc. Small Areas like Entrances, Restrooms  Individual rooms, restroom stalls, etc.

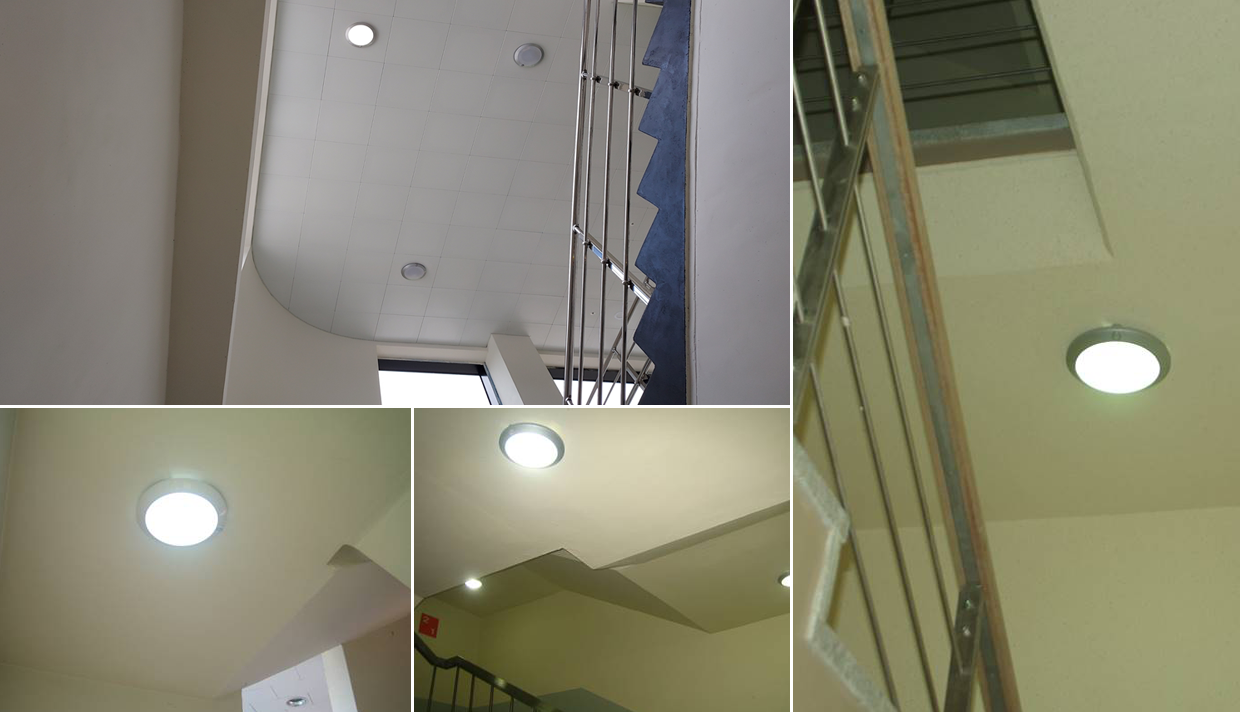

Configuration Examples

　

Specifications

Item ACL224HS
Total flux 2,300lm
Color temperature 5,700K
Efficiency 105lm/W
Rated input AC 220V~, 60Hz, 0.11A
Rated power 24W
Power factor PF >=0.92
Color rendering index Ra80
Operating temperature -30°C ~ 55°C
Detection Angle Max 120° ~ Min 30° Adjustable
Field Of View Maximum vertical distance of 8-9m, within a radius of 4-5m
Daylight Setting Night(5~10LUX), Cloudy(30~60LUX), Regardless of illumination (100LUX) 3 levels
Sensor Time Delay 30s, 3m, 10m
Size Ø 320mm(Diameter) x 90mm(Hight)
