Ultrasonic occupancy sensor

Dual-Tech Occupancy Sensor AUS102CM / AUS101CM

  • AUS102CM (2Way)
  • AUS101CM (1Way)

Product Description

  • We combine the advantages of our Doppler ultrasonic occupancy sensor technology [ultra-high sensitivity, maximum detection range of 20m] with infrared sensor technology. The initial activation is triggered by the infrared sensor detection, and the continuous illumination utilizes both sensor detection signals.
  • Ultrasonic waves are inaudible sound waves, ensuring no interference or harm to humans from electronic waves.
  • The Doppler method detects changes in the frequency of the reflected ultrasonic waves, allowing it to sense movements beyond restroom cubicle partitions. Additionally, it does not penetrate spaces blocked by doors or glass, preventing detection of unnecessary movements outside the targeted area.
  • We have enhanced the reliability of sensor operation through independently developed error detection software.

Applications

  • Enclosed spaces such as restrooms, meeting rooms, classrooms, laboratories, and break rooms

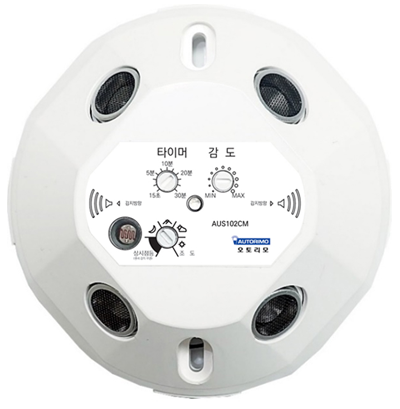

Functions

Item Feature Range factory default
Timer Sets the illumination duration after sensor detection 15s ~ 30m 15s
Sensitivity Adjusts the sensitivity of the occupancy sensor, ranging from strong to weak 0 ~ 100%
Daylight and Always-on Lighting Daylight : Sets the illuminance level at which the sensor turns lights on or off.
Always-on Lighting : the lights remain on continuously, regardless of sensor activity.
Regardless of illumination
30~20Lux
20~10Lux
Less than 10LuxAlways-on Lighting : Always-on
Regardless of illumination

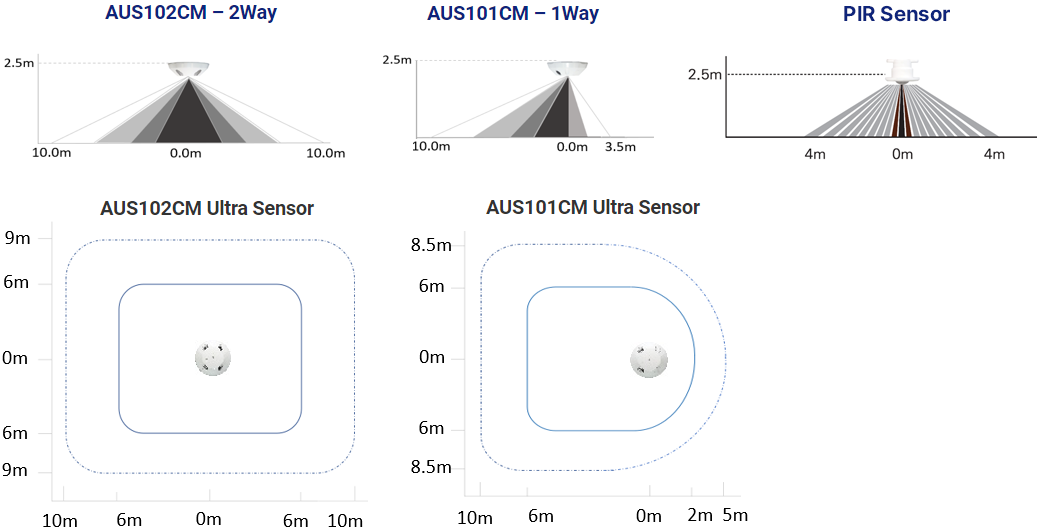

Field Of View

  • You can choose between 2Way and 1Way depending on the usage space of the product.
  • 2Way has ultrasonic transducers positioned bidirectionally, detecting up to a maximum diameter of 20m centered around the sensor.
  • 1Way has ultrasonic transducers positioned unidirectionally, detecting up to a maximum of 10m in the transmission direction.

Design Examples

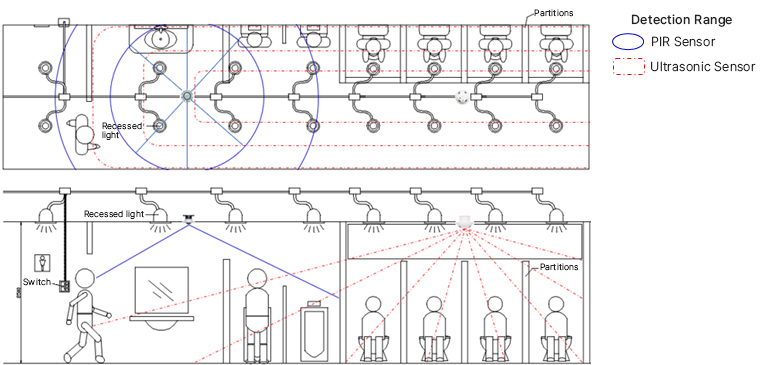

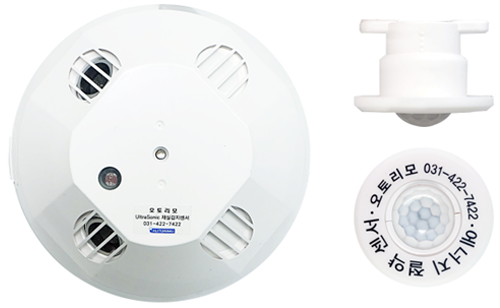

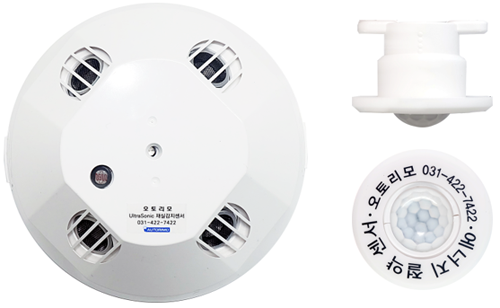

  • Install a PIR sensor head near the entrance and an ultrasonic sensor inside.

Wiring Diagram

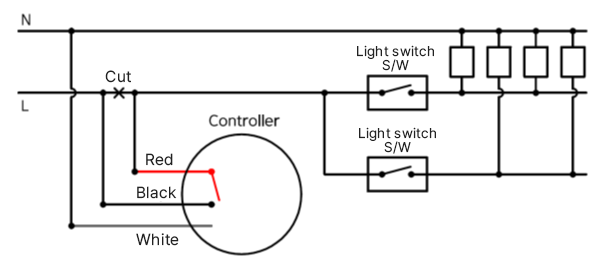

① Connect the neutral wire(N) to the white terminal of the product.
② Cut the switch common wire(L) between the distribution board and the light switch. Connect the cut switch common 1st (power) wire to the black terminal of the product.
③ Connect the cut switch common 2nd (output) wire, which was cut in step ②, to the red terminal of the product.

Installation Method

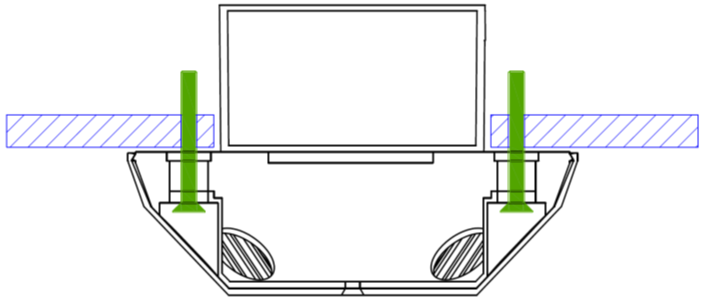

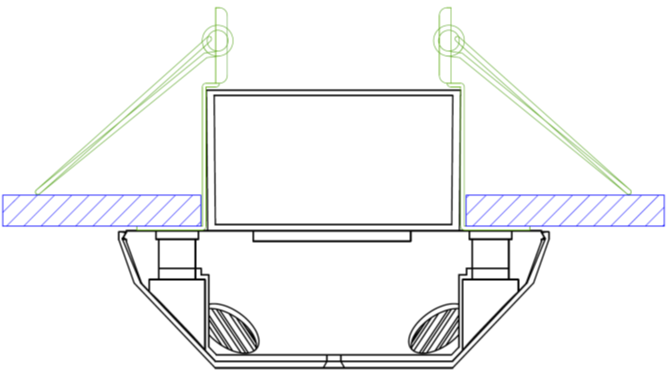

  • Using the spring brackets, you can fix the sensor to the ceiling by applying elasticity of springs.

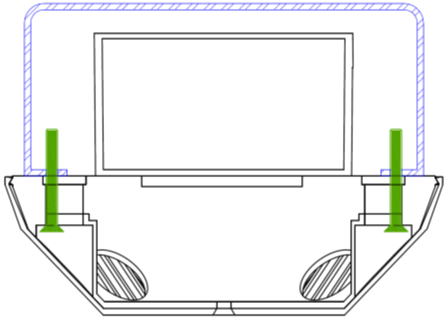

  • Open the front cover and use the screw holes of the mail body to fix it to the ceiling with screws.

  • Open the front cover and fix it by directly attaching it to the switch box (Screw hole spacing 81.5±1mm).

Specifications

Item AUS102CM AUS101CM
Input Voltage 220V, 50/60Hz
Certification standard 220V 12A AC
Power Consumption Less than 1W
Daylight Setting Sunny (More than 30Lux), Partly Cloudy (30 ~ 20Lux), Mostly Cloudy (20 ~ 10Lux), Night (less than 10Lux)
Sensitivity Possible (Ultrasonic sensor only)
Occupancy Sensor Time Delay 15s~30m
Always-on Lighting Possible (Function to keep the lighting fixture always on, regardless of the sensor connection)
Size Diameter Ø112, Hight 93mm (Visible part 35mm )
Field Of View[H:3m ]
2-Way PIR 1-Way
Max 20m Radius 4 ~ 5m Min 13.5m
