Multi-Head Ultrasonic Occupancy Detection System

※ Maximum number of sensor heads that can be connected per Controller : Total of 10

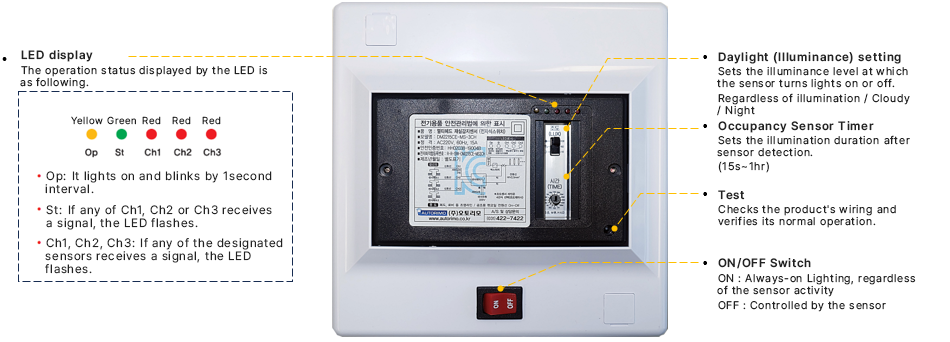

Product Description

• Connecting multiple Doppler-type ultrasonic sensor heads to the sensor controller, it is compatible with DM2215CE-MS-3CH, DM2215CE-MS-3CHW, DM2215CE-MS-3CHB.
• The ultrasonic sensor heads can detect up to a maximum linear distance of 20m per sensor head, making them suitable for covering large areas with fewer sensor heads. This is ideal for very large spaces, such as corridors and parking lots, where energy savings are required.
• Maximizing the output of the sensor heads enables uninterrupted signal transmission (up to 100m) even for long-distance applications, ensuring signal delivery without attenuation.

Functions

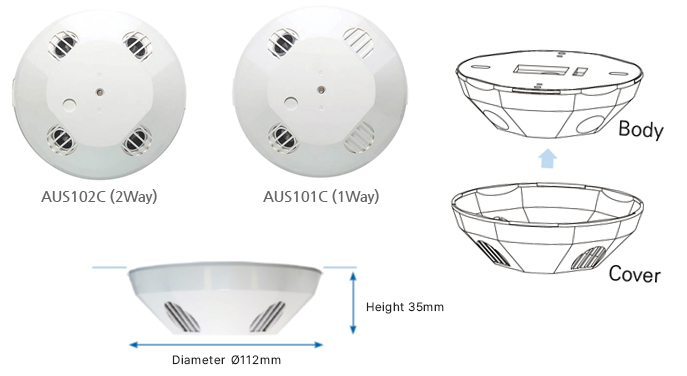

Ultrasonic Sensor Heads

• The sensor head uses ultrasonic Doppler technology to emit ultrasonic waves, detecting changes in the frequency of echoes. It can capture subtle movements of the human body or detect beyond partitions.

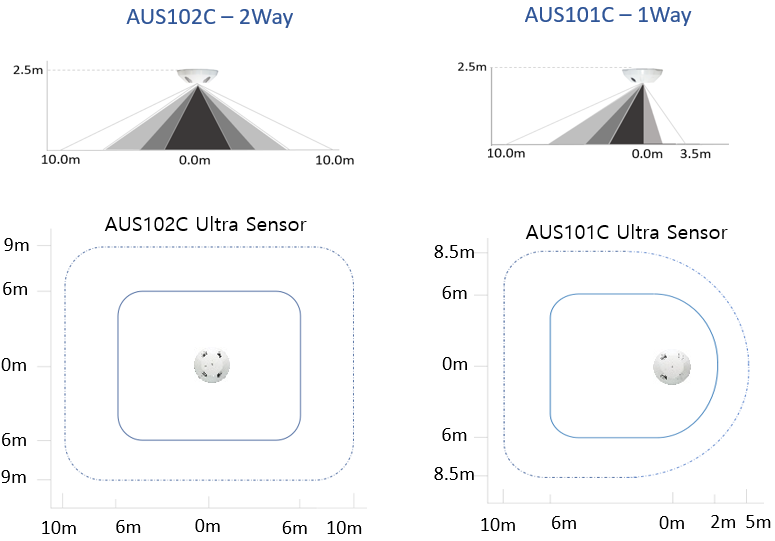

Field Of View

Design Examples

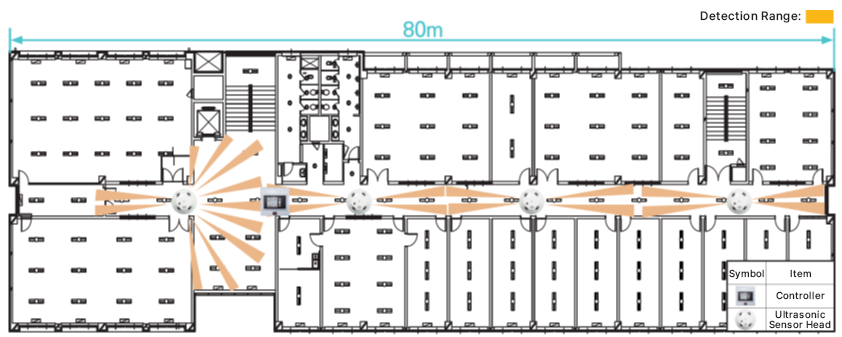

• Corridors

  It is suitable for use in hallways or enclosed spacious areas with minimal influence from windows or air conditioning.
  Install ultrasonic sensor heads primarily in spaces with frequent movement or entry, and the light will be turned on immediately upon detecting movement, even at a long distance.

Wiring Diagram

Specifications
