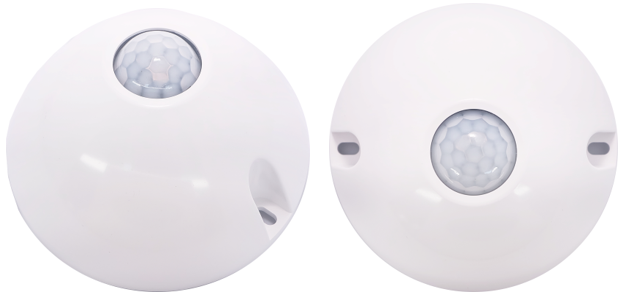

Small High-Sensitivity Sensor for LED DM2215CE-W90-L

Product Description

• A waterproof, sealed, small, high-sensitivity sensor switch that can be installed indoors or outdoors.
• It can be directly attached to LED lighting fixtures for individual control or mounted directly on the ceiling or pathway to control subgroup lighting, allowing for various applications.

Installation Method

• The product DM2215CE-W90-L is an all-in-one bracket type, and the shape of the bracket can vary depending on the installation method of the lighting fixture. It can be custom ordered and produced according to on-site requirements.

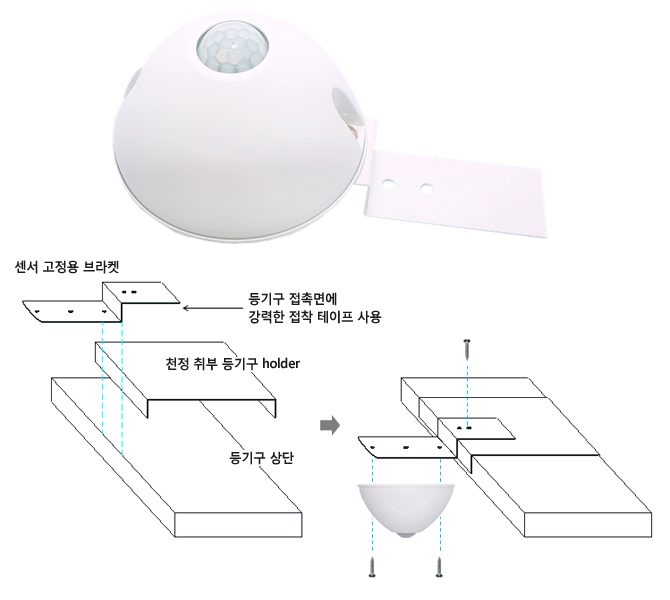

• Bracket Type A: For lighting fixture mounting

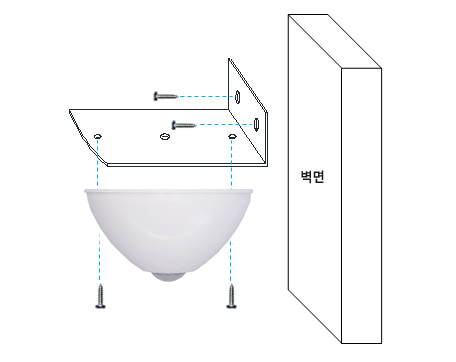

• Bracket Type B: For wall mounting

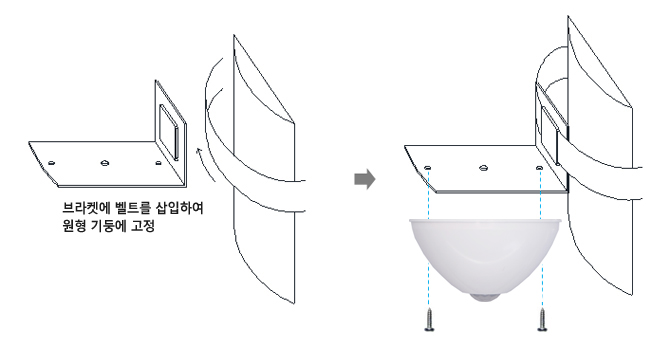

• Bracket Type C: For poles/street lamps/garden lights (band ring type)

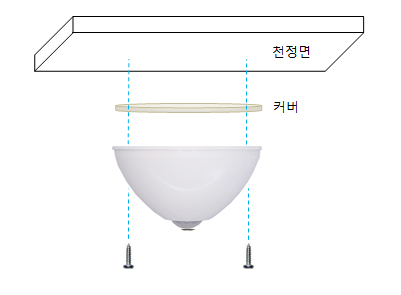

• Independent Type: For ceiling mounting



  When installed independently next to the lighting fixture on the ceiling

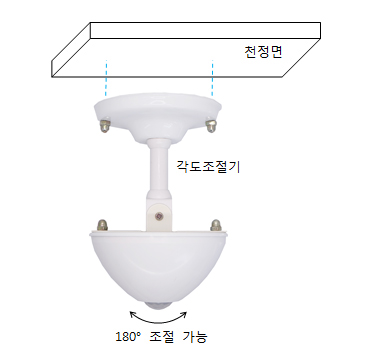

• Adjustable Type: For adjusting detection angle when mounted on the ceiling

  Suitable for installation around the entrance, garden lights, and street lamps in single-family or detached houses, allowing angle adjustment of the detection range.

Design Examples

Entrance Light

• The entrance light turns on when entering, ensuring safety during pedestrian movement.

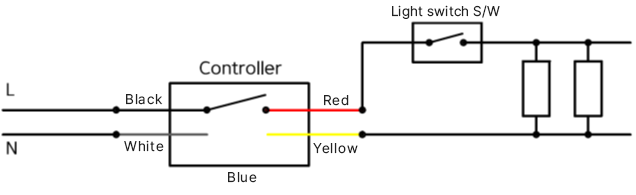

Wiring Diagram

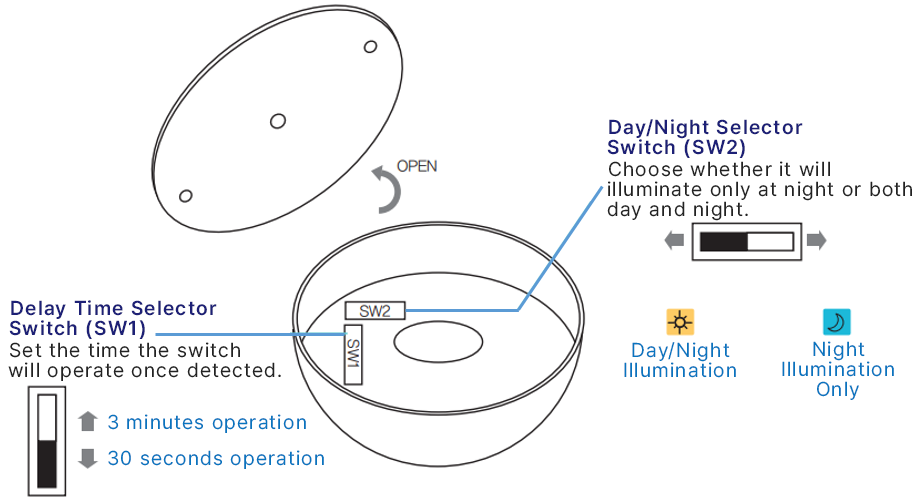

Selector Switch Configuration

Specifications
