Controls the lights in places such as bathrooms, warehouses, and underground parking lots.
Utilizing a double timer system, it reduces unnecessary illumination time due to extensions, allowing planned time settings based on usage purposes.

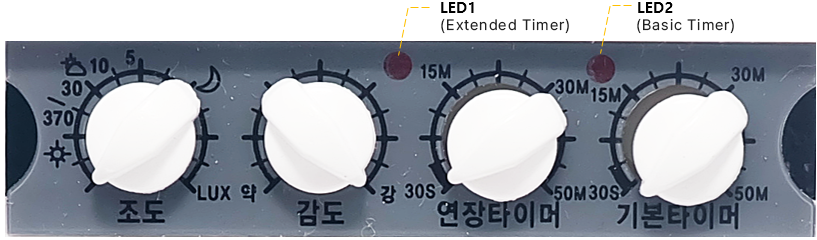

[Front Control Panel]

Daylight (Illuminance)
- Day/Night operation on a clear day (Typically 400Lux or more)
- Start operation on a cloudy day (Typically 30~10Lux)
- Lighting at night
Sensor Sensitivity

Adjusts the sensitivity of the occupancy sensor, ranging from strong to weak.
When turned to the right, the sensitivity increases, and the factory default setting is at maximum sensitivity.
Sensor Timer

Basic Timer : Sets the illumination duration after sensor detection. (30s~50m)
Extended Timer : The basic timer is activated, and if a pedestrian is detected in the latter part, you can set the extended illumination maintenance time.

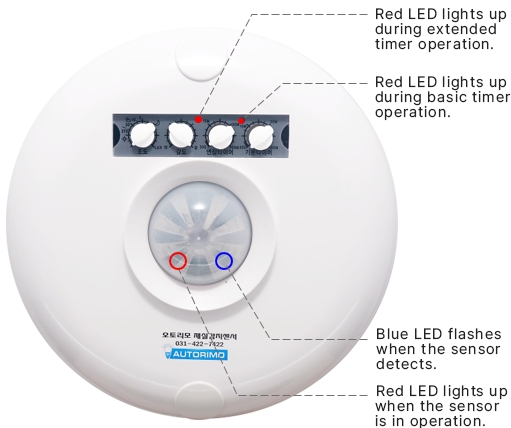

LED display

Using a 34Ø wide-angle sensor allows for detection in a broader area.
DM2210MS / DM2210BL can detect in a range of 125˚, while DM2215MS and DM2215BL can detect in a range of up to 135˚.

Item	DM2215BL	DM2210BL
Certification standard	220V, 15A AC / Allowable Load Margin 220V, 20A AC (LC Load Criteria)
Possible Instantaneous Overload	220V, 40A AC For 3 seconds, repeated 100 times (Refer to the test report.)
Field Of View	Radius ⌀5~6m	Radius ⌀4
Detection Angle	135°	125°
Daylight Setting	0 ~ 600 LUX
Time Delay	Basic Timer 30s~50m, Extended Timer 30s~50m
Sensitivity	Possible
Power Consumption	Less than 1W
Test Function	None
Operating Power	220V, 50/60Hz
Internal Power Consumption	Regulated 12V DC by Switching Power Supply
Noise Countermeasure	Reduces the impact of power noise through the application of a Noise Filter and Surge Suppressor in the power input section.
Automatic Temperature Compensation	Automatic sensitivity calibration according to temperature changes from 20 to 45℃
Size	Diameter Ø120, Hight 43mm
