Patient Inactivity Alarm System

Product Description

• This is a product specialized for individual spaces such as hospital restrooms and single-patient rooms, where privacy is preserved and emergency situations for patients and the elderly can be detected solely by sensing movement without infringing on privacy. After entering, if there is no movement from the occupant for a certain period, an alert signal is sent externally, and an emergency call switch can be connected to allow the occupant to directly call for help. Hospitals, nursing facilities, and other places where multiple individual spaces need monitoring can systematize monitoring through a PC program. (Refer to the bottom occupancy monitoring system)

Product Configuration

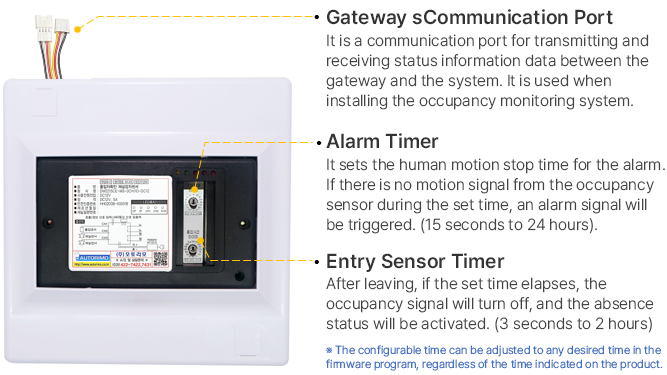

Controller DM2215CE-MS-3CH/IO-DC12

• Using the signals received from the sensor heads, it discerns the status information and toggles the corresponding contacts ON/OFF. Alternatively, when using the occupancy monitoring system, it transmits the status information through the communication port for the gateway. Power is supplied by a DC12V DC power supply.

• Entry Sensor Head(P60H)

  Install at the upper/direct top of the entrance to confirm entry and exit. If installation at the top is challenging, you can use the bracket (P60H-WB) designed for entry sensor heads, making it easy to install on doors or walls.

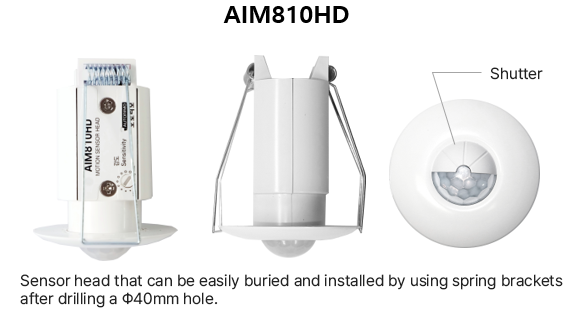

• Occupancy Sensor head

  Install inside the detection space to confirm the presence or absence of occupancy. It comes with the standard provision of AIM810HD (L-type).

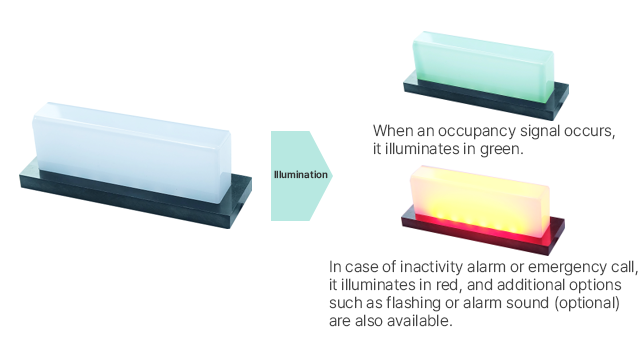

• LED Display Device



  The status information such as occupancy, inactivity alarm, and emergency call is displayed externally with lamp colors.

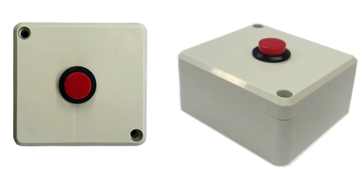

• Emergency Call Switch

  Installed indoors, when the user presses the switch, it switches to alarm mode, which can be observed from the outside. It can be custom-made or replaced with commercially available push switches.

Installation Examples

---

Occupancy Monitoring System

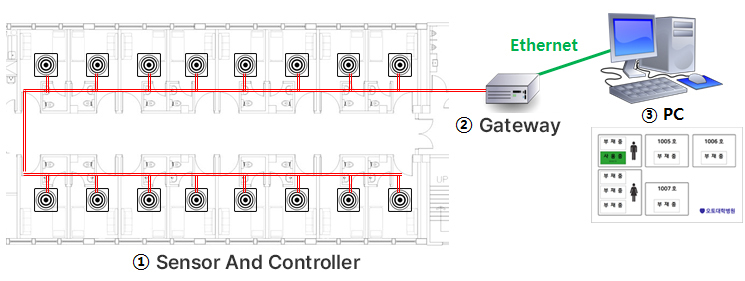

System Configuration

Product Description

• The system integrates status information from multiple individual spaces into a single PC screen.
• The Patient Inactivity Alarm System (DM2215CE-MS-3CH/IO-DC12) is installed in each room, and when occupancy or alarm status signals occur, the status information is transmitted to the gateway.
• The gateway then forwards the received status information to the PC, allowing users to monitor the occupancy status of each room in real-time through the monitor screen.

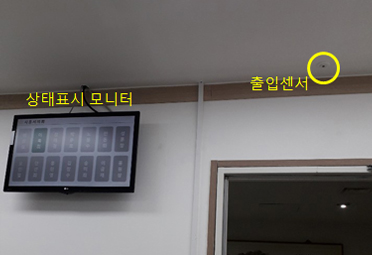

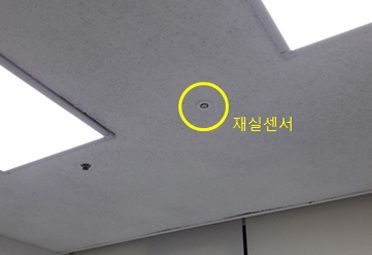

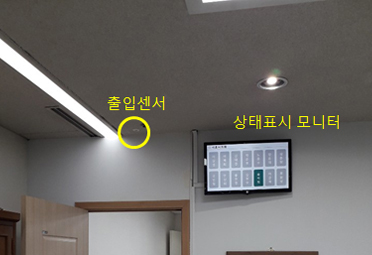

Installation Examples

City Council Office

•
•
•
